〈按此圖例看放大圖〉

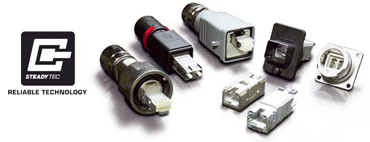

組合沒有極限─STX模組化連接器系統

好處由於最大模組化。新的Telegartner STX乙太網路連接器，可利用在形態1、形態4和形態5和全部以STEADYTEC技術，提供一個可以靈活地結合另一沒有負擔調整且符合標準的解答，因為可自由地選擇的插入物可以用於所有IP67防護套。這提供廣大區域的自由度在模組化選擇和在模組化應用。除了RJ45插入物之外，光纖連接器為塑料光纖(POF)，塑料材質的纖維(PCF)和玻璃光纖(GOF)在9 µm， 50 µm和62.5 µm可全部聯合。在此之外，變化形式的一種獨特的選擇在塑料或金屬是可利用的。
另外，所有連接器在依照被規範化與prEN 50173-1和-3、 ISO/IEC 24702、IEC 61918、IEC 61784-5或IEC 61076-3-106。〈欲知產品規格可到產品資訊的工業用乙太網路-工業用網路連接器〉
SIMFix Pro – Connectors for Corrugated Cables

Compact – secure – durable. With its SIMFixR Pro series, Telegartner introduces a new generation of compact connectors for ?", 7/8", 1 ?" and 1 5/8" corrugated cables. The new development combines the proven benefits of the SIMFixR series with the particularly high safety reserves with regard to water tightness found in the SIMFix® Plus series. The SIMFix connectors are particularly well suited for high power transfer levels in the transmission area and, beyond this, are characterized by their outstanding HF technology properties particularly with regard to return loss and intermodulation. ...read more

Telegartner 10 Gigabit Ethernet Networking Solution

- 10 Gigabit Ethernet Application Assurance.
- Third-Party Tested Category 6A Channel Compliant.
- Maximum Bandwidth Beyond 500MHz.
- ANEXT Component Compliant.
- PoE and PoE+ Ready.

The Telegartner AMJ 10 Gigabit Ethernet System is a tuned system of structured cabling components designed and center balanced to work together delivering true standards compliant 10 Gigabit Ethernet/Category 6A channel transmission for the full 100 meters. Telegartner AMJ 10 Gigabit Ethernet System provides headroom beyond 500MHz, and adds protection against ANEXT and EMI.....
〈欲知產品規格可到下載資料，資訊語音產品系列下載〉
