| 19"《基本型》光纖機架式收容箱 (19“ FO Patch Panel BASIS V) |
| 《基本型》配裝金屬面板 (BASIS V with assembled front plate) |
|
|
| Order no. |
Housing type |
Number of panel piercings and connector type |

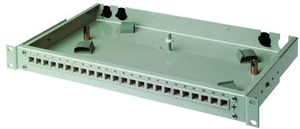

| H02030A0500 |
BASIS V 1 HU |
for 24xMT-RJ adaptors |
| H02030A0501 |
BASIS V 1 HU |
for 24xMT-RJ jack |
|
|
| 《基本型》配裝轉接頭 (BASIS V with assembled adaptors) |
|
|
| Order no. |
Housing type |
Adaptor |
Splice cassettes |
| H02030A0000 |
BASIS V 1 HU |
12xT-ST adaptor, ceramic sleeve, metal housing |
1 |
| H02030A0001 |
BASIS V 1 HU |
24xT-ST adaptor, ceramic sleeve, metal housing |
2 |
| H02030A0004 |
BASIS V 1 HU |
12xT-SC adaptor, ceramic sleeve, metal housing |
1 |
| H02030A0005 |
BASIS V 1 HU |
24xT-SC adaptor, ceramic sleeve, metal housing |
2 |
| H02030A0008 |
BASIS V 1 HU |
6xSC-Duplex adaptor, ceramic sleeve, metal housing |
1 |
| H02030A0009 |
BASIS V 1 HU |
12xSC-Duplex adaptor, ceramic sleeve, metal housing |
2 |
| H02030A0034 |
BASIS V 1 HU |
24xSC-Duplex adaptor, ceramic sleeve, metal housing |
2 |
| H02030A0012 |
BASIS V 1 HU |
6xST/SC adaptor, ceramic sleeve, metal housing |
1 |
| H02030A0013 |
BASIS V 1 HU |
12xST/SC adaptor, ceramic sleeve, metal housing |
2 |
| H02030A0035 |
BASIS V 1 HU |
24xST/SC adaptor, ceramic sleeve, metal housing |
2 |
| H02030A0052 |
BASIS V 1 HU |
24xMT-RJ adaptor, ceramic sleeve, metal housing |
2 |
| H02030A0091 |
BASIS V 1 HU |
12xLC-Duplex adaptor, ceramic sleeve, plastic housing |
2 |
| H02030A0092 |
BASIS V 1 HU |
24xLC-Duplex adaptor, ceramic sleeve, plastic housing |
2 |
|
|
《基本型》配裝轉接頭和彩色引線〈連接器插件〉
(BASIS V with assembled adaptors and coloured pigtails (connectors plugged-in)) |
|
|
| Order no. |
Housing type |
Adaptor |
Fibre Pigtails |
| H02030B0000 |
BASIS V 1 HU |
12xT-ST adaptor |
12 x 50/125, 2 m, T-ST |
| H02030C0000 |
BASIS V 1 HU |
12xT-ST adaptor |
12 x 62,5/125, 2 m, T-ST |
| H02030B0001 |
BASIS V 1 HU |
24xT-ST adaptor |
24 x 50/125, 2 m, T-ST |
| H02030C0001 |
BASIS V 1 HU |
24xT-ST adaptor |
24 x 62,5/125, 2 m, T-ST |
| H02030B0004 |
BASIS V 1 HU |
12xT-SC adaptor |
12 x 50/125, 2 m, T-SC |
| H02030C0004 |
BASIS V 1 HU |
12xT-SC adaptor |
12 x 62,5/125, 2 m, T-SC |
| H02030B0005 |
BASIS V 1 HU |
24xT-SC-Duplex adaptor |
24 x 50/125, 2 m, T-SC |
| H02030C0005 |
BASIS V 1 HU |
24xT-SC-Duplex adaptor |
24 x 62,5/125, 2 m, T-SC |
| H02030B0008 |
BASIS V 1 HU |
6xT-SC-Duplex adaptor |
12 x 50/125, 2 m, T-SC |
| H02030C0008 |
BASIS V 1 HU |
6xT-SC-Duplex adaptor |
12 x 62,5/125, 2 m, T-SC |
| H02030D0009 |
BASIS V 1 HU |
12xT-SC-Duplex adaptor |
24 x 9/125, 2 m, T-SC |
| H02030B0009 |
BASIS V 1 HU |
12xT-SC-Duplex adaptor |
24 x 50/125, 2 m, T-SC |
| H02030C0009 |
BASIS V 1 HU |
12xT-SC-Duplex adaptor |
24 x 62,5/125, 2 m, T-SC |
| H02030D0034 |
BASIS V 1 HU |
24xST/SC Duplex adaptor |
48 x 9/125, 2 m, T-SC |
| H02030B0034 |
BASIS V 1 HU |
24xST/SC Duplex adaptor |
48 x 50/125, 2 m, T-SC |
| H02030C0034 |
BASIS V 1 HU |
24xST/SC Duplex adaptor |
48 x 62,5/125, 2 m, T-S |
| H02030B0012 |
BASIS V 1 HU |
6xST/SC Duplex adaptor |
12 x 50/125, 2 m, T-ST |
| H02030C0012 |
BASIS V 1 HU |
6xST/SC Duplex adaptor |
12 x 62,5/125, 2 m, T-ST |

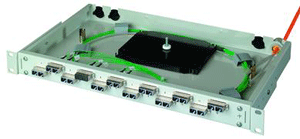

| H02030B0013 |
BASIS V 1 HU |
12xST/SC Duplex adaptor |
24 x 50/125, 2 m, T-ST |
| H02030C0013 |
BASIS V 1 HU |
12xST/SC Duplex adaptor |
24 x 62,5/125, 2 m, T-ST |
| H02030B0035 |
BASIS V 1 HU |
24xT-SC adaptor |
48 x 50/125, 2 m, T-ST |
| H02030C0035 |
BASIS V 1 HU |
24xT-SC adaptor |
48 x 62,5/125, 2 m, T-ST |
| H02030B0052 |
BASIS V 1 HU |
24xMT-RJ feedthrough adaptor |
24 x 50/125, 2 m, MT-RJ |
| H02030C0052 |
BASIS V 1 HU |
24xMT-RJ feedthrough adaptor |
24 x 62,5/125, 2 m, MT-RJ |
| H02030B0491 |
BASIS V 1 HU |
12xLC Duplex adaptor |
24 x 50/125, 2 m, LC |
| H02030D0491 |
BASIS V 1 HU |
12xLC Duplex adaptor |
24 x 9/125, 2 m, LC |
| H02030B0492 |
BASIS V 1 HU |
24xLC Duplex adaptor |
48 x 50/125, 2 m, LC |
| H02030D0492 |
BASIS V 1 HU |
24xLC Duplex adaptor |
48 x 9/125, 2 m, LC |
|
|
|
| Order no. |
Housing type |
Adaptor |
Fibre Pigtails |
Remarks |

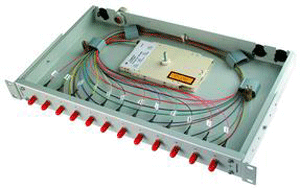

| H02030E0000 |
BASIS V 1 HU |
12xT-ST adaptor |
12 x 50/125, 2 m, T-ST |
coloured, stripped for splicing |
| H02030E0001 |
BASIS V 1 HU |
24xT-ST adaptor |
12 x 62,5/125, 2 m, T-ST |
coloured, stripped for splicing |
| H02030E0004 |
BASIS V 1 HU |
12xT-SC adaptor |
24 x 50/125, 2 m, T-ST |
coloured, stripped for splicing |
| H02030E0005 |
BASIS V 1 HU |
24xT-SC-Duplex adaptor |
24 x 62,5/125, 2 m, T-ST |
coloured, stripped for splicing |
| H02030E0008 |
BASIS V 1 HU |
6xT-SC Duplex adaptor |
12 x 50/125, 2 m, T-SC |
coloured, stripped for splicing |
| H02030E0009 |
BASIS V 1 HU |
12xT-SC Duplex adaptor |
12 x 62,5/125, 2 m, T-SC |
coloured, stripped for splicing |
| H02030E0012 |
BASIS V 1 HU |
6xST/SC Duplex adaptor |
24 x 50/125, 2 m, T-SC |
coloured, stripped for splicing |
| H02030E0013 |
BASIS V 1 HU |
12xST/SC Duplex adaptor |
24 x 62,5/125, 2 m, T-SC |
coloured, stripped for splicing |
| H02030E0034 |
BASIS V 1 HU |
24xT-SC Duplex adaptor |
12 x 50/125, 2 m, T-SC |
coloured, stripped for splicing |
| H02030E0035 |
BASIS V 1 HU |
24xST/SC-Duplex adaptor |
12 x 62,5/125, 2 m, T-SC |
coloured, stripped for splicing |
| H02030E0491 |
BASIS V 1 HU |
12xLC Duplex adaptor |
24 x 9/125, 2 m, T-SC |
coloured, stripped for splicing |
| H02030E0492 |
BASIS V 1 HU |
24xLC Duplex adaptor |
24 x 50/125, 2 m, T-SC |
coloured, stripped for splicing |
| H02030F0000 |
BASIS V 1 HU |
12xT-ST adaptor |
24 x 62,5/125, 2 m, T-SC |
coloured, stripped for splicing |
| H02030F0001 |
BASIS V 1 HU |
24xT-ST adaptor |
48 x 9/125, 2 m, T-SC |
coloured, stripped for splicing |
| H02030F0004 |
BASIS V 1 HU |
12xT-SC adaptor |
48 x 50/125, 2 m, T-SC |
coloured, stripped for splicing |
| H02030F0005 |
BASIS V 1 HU |
24xT-SC-Duplex adaptor |
48 x 62,5/125, 2 m, T-S |
coloured, stripped for splicing |
| H02030F0008 |
BASIS V 1 HU |
6xT-SC-Duplex adaptor |
12 x 50/125, 2 m, T-ST |
coloured, stripped for splicing |
| H02030F0009 |
BASIS V 1 HU |
12xT-SC-Duplex adaptor |
12 x 62,5/125, 2 m, T-ST |
coloured, stripped for splicing |
| H02030F0012 |
BASIS V 1 HU |
6xST/SC Duplex adaptor |
24 x 50/125, 2 m, T-ST |
coloured, stripped for splicing |
| H02030F0013 |
BASIS V 1 HU |
12xST/SC Duplex adaptor |
24 x 62,5/125, 2 m, T-ST |
coloured, stripped for splicing |
| H02030F0034 |
BASIS V 1 HU |
24xST/SC Duplex adaptor |
48 x 50/125, 2 m, T-STs |
coloured, stripped for splicing |
| H02030F0035 |
BASIS V 1 HU |
24xT-SC adaptor |
48 x 62,5/125, 2 m, T-ST |
coloured, stripped for splicing |
| H02030F0491 |
BASIS V 1 HU |
12xLC Duplex adaptor |
24 x 50/125, 2 m, MT-RJ |
coloured, stripped for splicing |
| H02030F0492 |
BASIS V 1 HU |
24xLC Duplex adaptor |
24 x 62,5/125, 2 m, MT-RJ |
coloured, stripped for splicing |
|
|
| 《基本型》機架式機箱 (BASIS V for individual ordering) |
|
|
| Order no. |
Description |
Remarks |
| H02030A0293 |
Housing BASIS V 1 HU |
Closed 19“ housing for storage of maximum 3 splice or combi cassettes, with integrated cable entry holes each 2 for M25 glands on the left and right, with additional strain relief clamps and guiding clips for fibres and cables, protection class IP 20 |
| H02031A0023 |
Housing BASIS V 2 HU |
Closed 19“ housing for storage of maximum 5 splice or combi cassettes, with integrated cable entry holes each for 2 M25 glands on the left and right, with additional strain relief clamps and guiding clips for fibres and cables, protection class IP 20 |
|
| Front plates and accessories see chapter ?Front Plates for Housing Types ECONOMY V / BASIS V / PROFI V / PROFI Plus“ |
|
|
| Order no. |
Description |
Remarks |
| H02030A0293 |
Housing BASIS V 1 HU |
Closed 19“ housing for storage of maximum 3 splice or combi cassettes, with integrated cable entry holes each 2 for M25 glands on the left and right, with additional strain relief clamps and guiding clips for fibres and cables, protection class IP 20 |
|
| front plates and accessories see chapter ?Front plates for Housing Types ECONOMY V / BASIS V / PROFI V / PROFI Plus“ |
|
| 配件用於《基本型》3 HU (Accessories for BASIS V 3 HU) |
|
|
| Order no. |
Description |

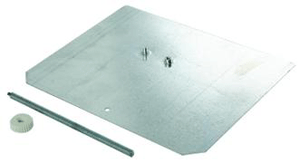

| H02050A0158 |
Base plate for splice cassette (stackable) for BASIS V 3 HU |
|
|
|
| Order no. |
Description |

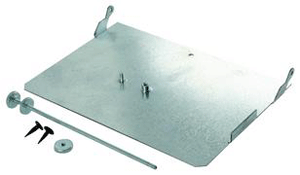

| H02050A0159 |
Base plate for splice cassette (stackable) for BASIS V 3 HU |
|
|
|
| Order no. |
Description |

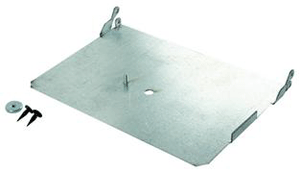

| H02050A0160 |
Carrier plate for splice cassettes (swivel) for BASIS V 3 HU |
|
|
| |
