光纖連接器組裝工具組與配件
(Termination Tool Set for FO Connectors and Accessories) |
| 光纖連接器組裝工具組與配件 (FO Tool Set for FO Connectors) |
|
|
| Order no. |
Description |
Remarks |
| N04001A0042 |

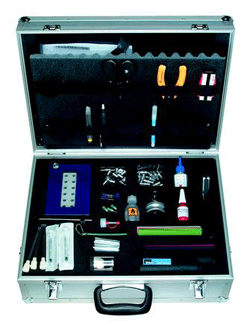

Termination Tool Set for FO connectors, basic equipment |
Content:
• Crimp tool for T-ST and T-SC connectors
• Kevlar cutter
• Stripping tool for jacket and primary coating
• Stripping tool for secundary coating
• Light rod with adaptor for connector
• Polishing and cleaning fluid
• Cleaning tissues
• Split-tip cleaning swabs
• Polishing pads
• Polishing foils
• Saphire scribe
• Microscope, 100x |
|
|
|
| Order no. |
Description |
Remarks |
| N04000A0005 |
Tool Set Fast Cure for FO connectors |
Content:
• Crimp tool for T-ST and T-SC connectors
• Kevlar cutter
• Stripping tool for jacket and primary coating
• Stripping tool for secondary coating
• Light rod with for connector (2,5 mm)
• Cleaning tissues
• Polishing pads for first and final polishing step
• Polishing foils
• Saphire scribe
• Microscope 100x |
|
|
| 光纖組裝工具組元件 (Components for FO Tool Set) |
|
|
| Order no. |
Description |
| N00000A0005 |
Crimp tool for T-ST and T-SC connectors |
|
|
|
|
|
| Order no. |
Description |
| N04001A0032 |
Kevlar scissors |
|
|
|
| Order no. |
Description |
| N04001A0015 |
Stripping tool for secondary coating |
|
|
|
| Order no. |
Description |
| N04001A0018 |
Light rod for connectors 2.5 mm dia. |
|
|
|
| Order no. |
Description |
| N04001A0026 |
Polishing and cleaning liquid |
|
|
|
| Order no. |
Description |
| N04001A0024 |
Cleaning tissues |
|
|
|
| Order no. |
Description |
| N04001A0034 |
Split-tip cleaning swabs |
|
|
|
| Order no. |
Description |
| N04001A0036 |
Polishing pads (2 pcs.) |
|
|
|
| Order no. |
Description |
Remarks |
| N00100A0000 |
Polishing foils 30 μm |
50 pieces |
|
|
|
| Order no. |
Description |
Remarks |
| N00100A0001 |
Polishing foils 3 μm |
50 pieces |
|
|
|
| Order no. |
Description |
Remarks |
| N00100A0002 |
Polishing foils 0,3 μm |
50 pieces |
|
|
|
| Order no. |
Description |
Remarks |
| N04001A0017 |
Cleaving tool |
for fibres |
|
|
|
| Order no. |
Description |
Remarks |
| N04001A0039 |
Microscope, 100x |
incl. batteries |
|
|
| 光纖組裝工具組配件 (Accessories for FO Tool Set) |
|
|
| Order no. |
Description |
| N04001A0046 |
Stripping tool for jacket, secondary and primary coating |
|
|
|
| Order no. |
Description |
| N04001A0040 |
200x Microscope Conversion Eyepiece |
|
|
|
| Order no. |
Description |
Remarks |
| Q00051A0006 |
Fast Cure adhesive set |
for approx. 250 connectors T-ST, T-SC |
|
|
|
| Order no. |
Description |
Remarks |
| M08010A0003 |
Curing Oven with adaptors for ST and SC connectors |
for 240 V / 50 Hz and 110 / 50 Hz |
|
|
|
| Order no. |
Description |
Remarks |
| Q00051A0000 |
2-components epoxy package |
Epo-tek 353 ND, for approx. 30 connectors, heat curing |
|
|
|
| Order no. |
Description |
Remarks |
| N04001A0037 |
Polishing disc for T-ST connector for POF |
spring-loaded |
|
|
|
| Order no. |
Description |
Remarks |
| N04001A0038 |
Polishing disc for T-SC plugs |
spring-loaded |
|
|
|
| Order no. |
Description |
Remarks |
| N04001A0048 |
Polishing disc for ST and SC plugs |
stainless steel, solid |
|
|
| |
