| 雙絞線銅纜 (Install Cable) |
| 雙絞線銅纜遮蔽方式根據分類設計： |
 |
 |
 |
 |
|

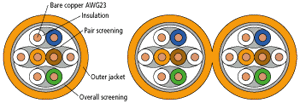

| Cat.7 S/FTP |
| |
 |
|
| Application |
Primary (Campus), Secondary (Riser), Tertiary (Horizontal)
IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T
IEEE 802.5 16MB; ISDN; TPDDI; ATM |
|
| Standards |
EIA/TIA-568-B; ISO/IEC 11801-2; IEC 61156-5; EN50173; EN5288-4-1 |
|
| Fire rating FRNC: |
IEC 60332-1; IEC 60754-2; IEC 61034 |
|
|
|
| 產 品 料 號 |
長 度 |
說 明 |
| L02002A0120 |
1000m one-way drum |
Category 7 七類全遮蔽對絞線
AMJ600 S/FTP 4x2xAWG23/1 FRNC |
| L02002A0121 |
500m one-way drum |
Category 7 七類全遮蔽對絞線
AMJ600 S/FTP 2x (4x2xAWG23/1) FRNC |
|
|
| Cat.6+ U/UTP 100Ω Data Cable EIA/TIA-568-B.2-1 Cat.6+ |
 |
 |
|
| Application |
Primary (Campus), Secondary (Riser), Tertiary (Horizontal) IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; Gigabit-Ethernet; ISDN; FDDI; ATM |
|
| Standards |
EIA/TIA-568-B.2-1 6/2002; IEC 61156-5; ISO/IEC 11801; EN50173 |
|
|
|
| 產 品 料 號 |
長 度 |
說 明 |
| L02002A0057 |
1000 ft (305 m) |
Category 6 超六類無遮蔽十字隔離對絞線
U/UTP 4x2xAWG23 |
|
|
| Cat.6 F/UTP 100Ω Data Cable IEC 61156-5 Cat.6 |
|
 |
|
| Application |
Tertiary (Horizontal) IEEE 802.3: 10BaseT; 100BaseT; Gigabit-Ethernet |
|
| Standards |
IEC 61156-5; ISO/IEC 11801; EN50173 |
|
| Fire Rating |
IEC 60332-1; UL 1581 FT2 (horizontal flame test) |
|
|
|
| 產 品 料 號 |
長 度 |
說 明 |
| L02002A0059 |
1000 ft (305 m) |
Category 6 六類遮蔽十字隔離對絞線
F/UTP 4x2xAWG23 |
|
|
| Cat.5e U/UTP 100Ω Data Cable EIA/TIA-568-B.2 Cat.5e |
 |
 |
|
| Application |
Tertiary (Horizontal) IEEE 802.3: 10Base-T; 100Base-T; Gigabit-Ethernet |
|
| Standards |
EIA/TIA 568-B.2; IEC 61156-5; ISO/IEC 11801; EN50173 |
|
|
|
| 產 品 料 號 |
長 度 |
說 明 |
| L02002A0036 |
1000 ft (305 m) |
Category 5e 超五類無遮蔽對絞線
U/UTP 4x2xAWG24 |
|
|
| Cat.5e F/UTP 100Ω Data Cable EIA/TIA-568-B.2 Cat.5e |
|
 |
|
| Application |
Tertiary (Horizontal) IEEE 802.3: 10Base-T; 100Base-T; Gigabit-Ethernet |
|
| Standards |
EIA/TIA 568-B.2; IEC 61156-5; ISO/IEC 11801; EN50173 |
|
|
|
| 產 品 料 號 |
長 度 |
說 明 |
| L02002A0038 |
1000 ft (305 m) |
Category 5e 超五類遮蔽對絞線
F/UTP 4x2xAWG24 |
|
|
| Cat.5e F/UTP 100Ω Data Cable EIA/TIA-568-B.2-1 Cat.5e |
|
 |
|
| Application |
Primary (Campus), Seconondary (Riser), Tertiary (Horizontal) IEEE 802.3: 10Base-T; 100Base-T; 1000Bsae-T; Gigabit-Ethernet; ISDN; FDDI; ATM |
|
| Standards |
EIA/TIA 568-B.2-1; IEC 61156-5; ISO/IEC 11801; EN50173 |
|
|
|
| 產 品 料 號 |
長 度 |
說 明 |
| L02002A0096D |
1000 ft (305 m) |
Category 5e 超五類遮蔽對絞線
F/UTP Solid Outdoor Cable 4x2xAWG24 |
|
|
|
