| 轉接器 (Adaptors) |
| Adaptors Cat.5e |
|
| Performance Characteristics |
• For the partitioning of an 8-wire RJ45 jack to 4-wire applications such as: 2x10/100BaseT, 2xToken Ring,
10/100BT/ISDN
• Cat. 5e acc. to ISO/IEC 11801 edition 2
• Shielded and unshielded
• Connection lead 150 mm long, strain relieved, RJ45-plug with latch bar protection
• Moulded cable boot
• Plastic housing, halogen-free, colour light grey RAL 7035
• Indication of the outputs by plug-in symbols for data and telephone application
• Marking label with transparent plastic cover
• Label with wiring scheme underside of the housing |
 |
|
|
| Order no. |
Short name |
Type |
Colour |
| J00029A0009 |
T-Adaptor S Cat.5e, 2x10/100BT |
shielded, outputs 2x10/100Base |
light grey
RAL 7035 |
| J00029A0010 |
T-Adaptor Cat.5e, 2x10/100BT |
unshielded, outputs 2x10/100BaseT |
light grey
RAL 7035 |
| J00029A0011 |
T-Adaptor S Cat.5e, 2xTR |
shielded, outputs 2xToken Ring |
light grey
RAL 7035 |
| J00029A0012 |
T-Adaptor Cat.5e,
2xTR |
unshielded, outputs 2xToken Ring |
light grey
RAL 7035 |
| J00029A0013 |
T-Adaptor S Cat.5e, 10/100BT/ISDN |
shielded, outputs 1x 10/100BaseT / 1xISDN |
light grey
RAL 7035 |
| J00029A0014 |
T-Adaptor Cat.5e, 10/100BT/ISDN |
unshielded, outputs 1x10/100BaseT / 1xISDN |
light grey
RAL 7035 |
|
|

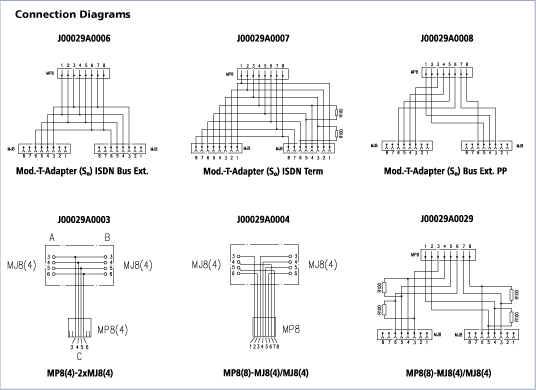

| Adaptors ISDN/Tel. |
|
| Performance Characteristics |
• For conversion of a star network configurations to S0 bus structure for ISDN/Telephone
• Different types for complete configuration
• Connection cable 100 mm long with moulded connector
• Indication of the outputs by plug-in telephone symbols
• Label with wiring scheme underside of the housing
• Halogen-free plastic housing, grey |
 |
|
|
| Order no. |
Short name |
Remark |
| J00029A0008 |
T-Bus-Ext. PP |
patch panel side |
| J00029A0006 |
T-Bus-Ext. Outlet |
outlet side |
| J00029A0007 |
T-Bus.-Term |
with integrated 100 Ω terminators |
| J00029A0029 |
MP8(8)-MJ8(4)/MJ8(4) |
T-Adaptor with 2x 100 Ω |
|
|
|
| Order no. |
Short name |
Remark |
| J00029A0003 |
MP8(4)-2xMJ8(4) |
for ISDN S0 distribution |
| J00029A0004 |
MP8(8)-MJ8(4)/8(4) |
for Cable Sharing ISDN/Telephone Cat.3 |
|
|
| |
