| ISDN-星狀佈線分線器 (ISDN Star) |
| Performance Characteristics |

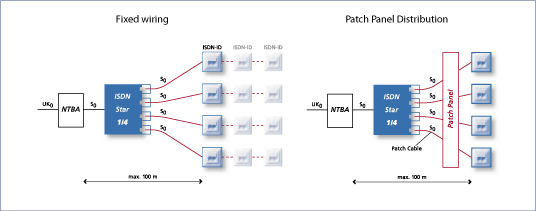

• Star partitioning of an S0-Bus into 4 channels
• Connection to the NTBA via unshielded RJ45-jack or via LSA Plus IDC block
• Connection to the terminals via unshielded RJ45 jacks or LSA-Plus IDC blocks
• Cable length between NTBA and terminal up to 100 meach maximum
• Total bus cabling maximum 400 m using Cat.5 cable (or better)
• Plastic housing; colour light grey (RAL 7035), for use as a desktop device, for mounting to wall or in cable ducts
• 19" rack-mount design size 3 HU/8 PU with anodized front plate
• 19" rack-mount design size 1 HU, light grey RAL 7035 |
|
 |
|
| Mini Distributor ISDN Star 1x 1/4 |
|
|
| Order no. |
Short name |
Type |
Colour |
| J02023C0014 |
Mini Distributor
ISDN Star 1/4 |
unshielded, input 1x RJ45 + IDC terminal block,
output 4x RJ45 + IDC terminal blocks |
light grey
RAL 7035 |
|
|
| Mini Distributor ISDN Star 2x 1/4 |
|
|
| Order no. |
Short name |
Type |
Colour |
| J02021A0025 |
Mini Distributor
ISDN Star 2x1/4 |
unshielded, input 2x RJ45 + IDC terminal block, output 2x4x RJ45 + IDC terminal blocks |
light grey
RAL 7035 |
|
|
| MPPI30 Cat.3 |
|
|
| Order no. |
Short name |
Type |
Colour |
| J02020A0022 |
Mini Distributor ISDN Star
1/4 3 HU/8 PU |
input RJ45/ICD terminal blocks,
output 4x RJ45, 3 HU/8 TU |
front panel anodized aluminium |
|
|
| MPPI50 Cat.3 |
|
|
| Order no. |
Short name |
Type |
| H02032A0021 |
19" Module Carrier with flange 3 HU / 84 PU |
anodized aluminum, completely
pre-assembled for 19" rack |
|
|
|
| Order no. |
Short name |
Type |
Colour |
| J02022A0026 |
19" Patch Panel
ISDN Star 4x1/4, 1 HU |
unshielded, input 4x RJ45 + IDC terminal blocks,
output 4x4xRJ45 + IDC terminal blocks |
light grey
RAL 7035 |
|
|
|
| Order no. |
Short name |
Type |
Colour |
| J02021A0027 |
10" Mini Patch Panel ISDN Star 2x1/4, 1 HU |
unshielded, input 2x RJ45 + IDC terminal block,
output 2x4x RJ45 + IDC terminal blocks |
light grey RAL 7035 |
|
|
| |
