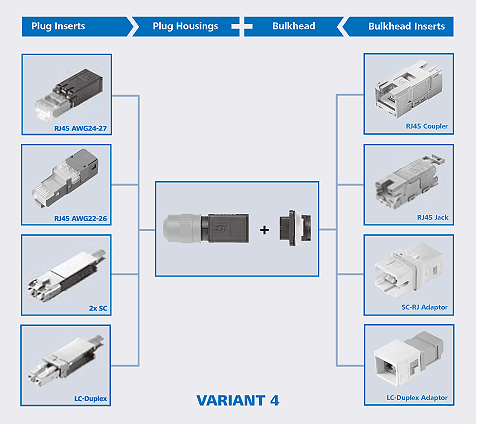

| 形態四 (Variant 4) |
Performance Characteristics
• variant 4 acc. to ISO/IEC 61076-3-106
• protection class IP67
• available with RJ45 Cat.6 or FO insert
• storage of cables with diameter 5...10 mm
• pre-assembled plugs and set products for simple mounting
• simple Mounting of bulkheads through a central screwed gland or four screws
• rugged PA-Housing
• with bend protection to prevent cables from being excessively bent
• rubber security strip at the protection cap
• colour codings available
• bay for marking labels |
|
|
 |
| RJ45 Plug Sets Variant 4 |
|
|
| Order no. |
Description |
Variant |
Solid/Stranded |
Housing |
Remarks |
| J80026A0013 |
STX V4 RJ45 plug
set Cat.6 |
V4 |
AWG24-27 |
plastic |
without bend protection |
| J80026A0014 |
STX V4 RJ45 plug
set Cat.6 |
V4 |
AWG24-27 |
plastic |
with bend protection |
|
|
|
| Order no. |
Description |
Variant |
Solid/Stranded |
Housing |
Remarks |
| J80026A0015 |
STX V4 RJ45 plug
set Cat.6 |
V4 |
AWG22-26 |
plastic |
without bend protection,
field assembly |
| J80026A0016 |
STX V4 RJ45 plug
set Cat.6 |
V1 |
AWG22-26 |
plastic |
with bend protection,
field assembly |
|
|
| FO Plug Sets Variant 4 |
|
|
| Order no. |
Description |
Variant |
Housing |
Connector type |
Fibre type |
Remarks |
| J88083A0002 |
STX V4 FO
plug set |
V4 |
plastic |
2SC |
Singlemode |
without bend protection |
| J88083A0003 |
STX V4 FO
plug set |
V4 |
plastic |
2SC |
Singlemode |
with bend protection |
| J88083A0000 |
STX V4 FO
plug set |
V4 |
plastic |
2SC |
Multimode |
without bend protection |
| J88083A0001 |
STX V4 FO
plug set |
V4 |
plastic |
2SC |
Multimode |
with bend protection |
| J88083A0004 |
STX V4 FO
plug set |
V4 |
plastic |
2SC |
POF |
without bend protection |
| J88083A0005 |
STX V4 FO
plug set |
V4 |
plastic |
2SC |
POF |
with bend protection |
|
|
|
| Order no. |
Description |
Variant |
Housing |
Connector type |
Fibre type |
Remarks |
| J88073A0002 |
STX V4 FO
plug set |
V4 |
plastic |
LC-Duplex |
Singlemode |
without bend protection |
| J88073A0003 |
STX V4 FO
plug set |
V4 |
plastic |
LC-Duplex |
Singlemode |
with bend protection |
| J88073A0000 |
STX V4 FO
plug set |
V4 |
plastic |
LC-Duplex |
Multimode |
without bend protection |
| J88073A0001 |
STX V4 FO
plug set |
V4 |
plastic |
LC-Duplex |
Multimode |
with bend protection |
|
|
| RJ45 Plug Inserts Variant 4 |
|
|
| Order no. |
Description |
Solid/Stranded |
| J80026A0002 |
STX RJ45 plug insert Cat.6 |
AWG24-27 |
|
|
|
| Order no. |
Description |
Solid/Stranded |
Remarks |
| J80026A0004 |
STX RJ45 plug insert Cat.6 |
AWG22-26 |
field assembly |
|
|
| FO Plug Inserts 2SC Variant 4 |
|
Performance Characteristics
• types for Singlemode, Multimode, POF, PCF on request
• ferrule distance: SC-RJ
• rugged zinc-diecast connector retainer
• mating cycles: >500
• suitable for Variant 1 and 4 |
|
|
| Order no. |
Description |
Connector type |
Fibre type |
| F80083A0001 |
STX FO plug insert |
2SC |
Singlemode |
| F80083A0000 |
STX FO plug insert |
2SC |
Multimode |
| F80083A0002 |
STX FO plug insert |
2SC |
POF |
|
|
| FO Plug Inserts LC-Duplex Variant 4 |
|
Performance Characteristics
• types for Singlemode, Multimode
• ferrule distance: LC-Duplex
• rugged zinc-diecast connector retainer
• mating cycles: >500
• suitable for Variant 1 and 4 |
|
|
| Order no. |
Description |
Connector type |
Fibre type |
| F80073A0001 |
STX FO plug insert |
LC-Duplex |
Singlemode |
| F80073A0000 |
STX FO plug insert |
LC-Duplex |
Multimode |
|
|
| Plug Housings Variant 4 |
|
|
| Order no. |
Description |
Variant |
Housing |
Remarks |
| H86011A0011 |
STX V4 plug housing |
V4 |
plastic |
without bend protection |
|
|
|
| Order no. |
Description |
Variant |
Housing |
Remarks |
| H86011B0011 |
STX V4 plug housing |
V4 |
plastic |
with bend protection |
|
|
| Dust Protection Caps for Plugs Variant 4 |
|
|
| Order no. |
Description |
Variant |
Remarks |
| H80030A0001 |
STX V4 plug protection cap |
V4 |
plastic |
|
|
| Colour Coding Variant 4 |
|
|
| Order no. |
Description |
Variant |
Colour |
| B80112A0000 |
STX colour coding |
for V1; V4 |
white |
| B80112A0001 |
STX colour coding |
for V1; V4 |
grey |
| B80112A0002 |
STX colour coding |
for V1; V4 |
orange |
| B80112A0003 |
STX colour coding |
for V1; V4 |
blue |
| B80112A0004 |
STX colour coding |
for V1; V4 |
yellow |
| B80112A0005 |
STX colour coding |
for V1; V4 |
green |
|
|
| RJ45 Bulkhead Sets Variant 4 |
|
|
| Order no. |
Description |
Variant |
Insert |
| J80020A0005 |
STX V4 bulkhead set |
V4 |
RJ45 coupler Cat.6 |
|
|
|
| Order no. |
Description |
Variant |
Insert |
| J80020A0004 |
STX V4 bulkhead set |
V4 |
RJ45 jack Cat.6 |
|
|
| RJ45 Bulkhead Sets Variant 1 |
|
|
| Order no. |
Description |
Variant |
Fibre type |
Insert |
| J88084A0001 |
STX V4 bulkhead set |
V4 |
Singlemode |
2SC/SC-RJ adaptor |
| J88084A0000 |
STX V1 bulkhead set |
V4 |
Multimode |
2SC/SC-RJ adaptor |
|
|
|
| Order no. |
Description |
Variant |
Fibre type |
Insert |
| J88074A0001 |
STX V4 bulkhead set |
V4 |
Singlemode |
LC-Duplex adaptor |
| J88074A0000 |
STX V1 bulkhead set |
V4 |
Multimode |
LC-Duplex adaptor |
|
|
| RJ45 Bulkhead Inserts Variant 4 |
|
|
| Order no. |
Description |
| J80029A0010 |
STX RJ45 coupler Cat.6 |
|
|
|
| Order no. |
Description |
Colour coding |
| J80029A0000 |
STX RJ45 jack Cat.6 |
EIA/TIA A |
| J80029A0001 |
STX RJ45 jack Cat.6 |
EIA/TIA B |
| J80029A0002 |
STX RJ45 jack Cat.6 |
Profinet |
|
|
| FO Bulkhead Inserts 2SC/SC-RJ Variant 4 |
|
Performance Characteristics
• Types for Singlemode, Multimode, POF, PCF on request
• Sleeve distance: SC-RJ
• Mating cycles: >500
• Suitable for Variant 1 and 4 |
|
|
| Order no. |
Description |
Connector type |
Fibre type |
| F80084A0001 |
STX FO adaptor |
2SC/SC-RJ |
Singlemode |
| F80084A0000 |
STX FO adaptor |
2SC/SC-RJ |
Multimode |
|
|
| FO Bulkhead Inserts LC-Duplex Variant 1 |
|
Performance Characteristics
• Types for Singlemode, Multimode
• Sleeve distance: LC-Duplex
• Mating cycles: >500
• Suitable for Variant 1 and 4 |
|
|
| Order no. |
Description |
Connector type |
Fibre type |
| F80074A0001 |
STX FO adaptor |
LC-Duplex |
Singlemode |
| F80074A0000 |
STX FO adaptor |
LC-Duplex |
Multimode |
|
|
| Bulkhead Housings Variant 4 |
|
|
| Order no. |
Description |
Variant |
Housing |
| H86000A0002 |
STX V4 bulkhead |
V4 |
plastic |
|
|
| Dust Protection Cap for Bulkheads Variant 4 |
|
|
| Order no. |
Description |
Variant |
Remarks |
| H80030A0005 |
STX V4 bulkhead protection cap |
V4 |
plastic |
|
|
| Outlets with Bulkhead Variant 4 |
|
|
| Order no. |
Description |
Variant |
Type |
cable feed |
Housing |
protection class |
Dimensions in mm |
| H82000A0000 |
STX V4 Surface
mount housing |
V4 |
single gang |
vertical |
metal |
IP 67 |
LxWxH = 75x80x57 |
|
|
|
| Order no. |
Description |
Variant |
Type |
cable feed |
Housing |
protection class |
Dimensions in mm |
| H82000A0001 |
STX V4 Surface
mount housing |
V4 |
double gang |
right hand |
metal |
IP 67 |
LxWxH = 125x80x57 |
|
|
|
| Order no. |
Description |
Variant |
Type |
cable feed |
Housing |
protection class |
Dimensions in mm |
| H82000A0002 |
STX V4 Surface
mount housing |
V4 |
double gang |
vertical |
metal |
IP 67 |
LxWxH = 125x80x57 |
|
|
| |
