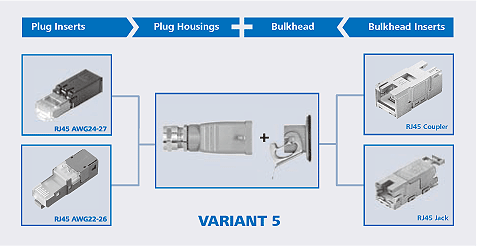

		回首頁 > 產品資訊 > 工業用網路連接器 (Industrial Connectors) 工業用網路連接器 (Industrial Connectors) • 耐用型 (Heavy Duty)   •形態一 (Variant 1)   •形態四 (Variant 4 )   •形態五 (Variant 5 )   •形態六 (Variant 6 ) • 標準型RJ45與插頭 (Light Duty DJ45 Plugs)   •RJ45插頭 (RJ45 Plug )   •纜線套件 (Cable Boots )   •顏色識別標記 (Colour Coding) • 標準型光纖連接器 (Light Duty FO Connectors)   •T-ST連接器 (T-ST Connectors )    形態五 (Variant 5) Performance Characteristics • variant 5 acc. to ISO/IEC 61076-3-106 • protection class IP67 • rugged aluminium diecast housing • storage of cables with diameter 6...12 mm • pre-assembled plugs and set products for simple mounting • simple Mounting of bulkheads with 2 screws • rubber security strip at the protection cap RJ45 Plug Sets Variant 5 Order no. Description Variant Solid/Stranded Housing J80026A0017 STX V5 RJ45 plug set Cat.6 V5 AWG24-27 metal Order no. Description Variant Solid/Stranded Housing J80026A0018 STX V5 RJ45 plug set Cat.6 V5 aluminium diecast field assembly RJ45 Plug Inserts Variant 1 Order no. Description Solid/Stranded J80026A0002 STX RJ45 plug insert Cat.6 AWG24-27 Order no. Description Solid/Stranded Remarks J80026A0004 STX RJ45 plug insert Cat.6 AWG22-26 field assembly Plug Housings Variant 5 Order no. Description Variant Housing H86010A0001 STX V5 plug housing V5 aluminium diecast Dust Protection Cap for Plugs Variant 5 Order no. Description Variant Housing H80030A0002 STX V5 plug housing V5 aluminium diecast RJ45 Bulkhead Sets Variant 5 Order no. Description Variant Insert Housing J80020A0007 STX V5 bulkhead set V5 RJ45 coupler Cat.6 aluminium diecast Order no. Description Variant Insert Housing J80020A0006 STX V5 bulkhead set V5 RJ45 coupler Cat.6 aluminium diecast RJ45 Bulkhead Inserts Variant 5 Order no. Description J80029A0010 STX RJ45 coupler Cat.6 Order no. Description Colour coding J80029A0000 STX RJ45 jack Cat.6 EIA/TIA A J80029A0001 STX RJ45 jack Cat.6 EIA/TIA B J80029A0002 STX RJ45 jack Cat.6 Profinet Bulkhead Housings Variant 5 Order no. Description Variant Housing H86000A0003 STX V5 bulkhead V5 aluminium diecast Dust Protection Cap for Bulkhead Variant 5 Order no. Description Variant Housing H80030A0006 STX V5 bulkhead protection cap V5 aluminium diecast Outlets with Bulkhead Variant 5 Order no. Description Variant Type cable feed Housing protection class Dimensions in mm H82000A0003 STX V5 Surface mount housing V5 single gang vertical metal IP 67 LxWxH = 75x80x57 Order no. Description Variant Type cable feed Housing protection class Dimensions in mm H82000A0004 STX V5 Surface mount housing V5 single gang vertical metal IP 67 LxWxH= 125x80x57 Order no. Description Variant Type cable feed Housing protection class Dimensions in mm H82000A0005 STX V5 Surface mount housing V5 single gang vertical metal IP 67 LxWxH= 125x80x57   <<TOP>>
